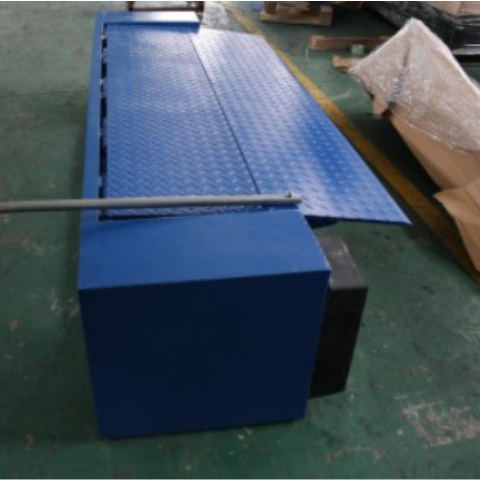

Manual Edge Dock Leveler

The loading and unloading platform is the best solution to adjust the height difference between the platform and the carriage. There are manual mechanical type, electro-hydraulic type. The operation is simple, the height can be adjusted arbitrarily, the adjustment range is large, the loading and unloading efficiency is improved, and the manpower is saved. Applicable places: large enterprises with frequent loading and unloading vehicles and different vehicle models, warehouses, stations, docks, warehouse logistics bases, postal transportation, logistics distribution, etc.

Features:

1. The most economical loading and unloading platform, manually operated, is used for occasions where the loading and unloading heights are approximately the same.

2. The installation is simple and convenient, and it can even be directly installed on the existing platform. The construction is simple and the installation is rapid, suitable for the renovation project.

Standard size  W1500*L700 ?W1800*L700 ?W2000* L700
Maximum slope of working range  12.50%
Positive height difference 100 mm
Negative height difference  150 mm
Bracket depth MRS  435 mm, without crash block
Loading capacity 3000kg
