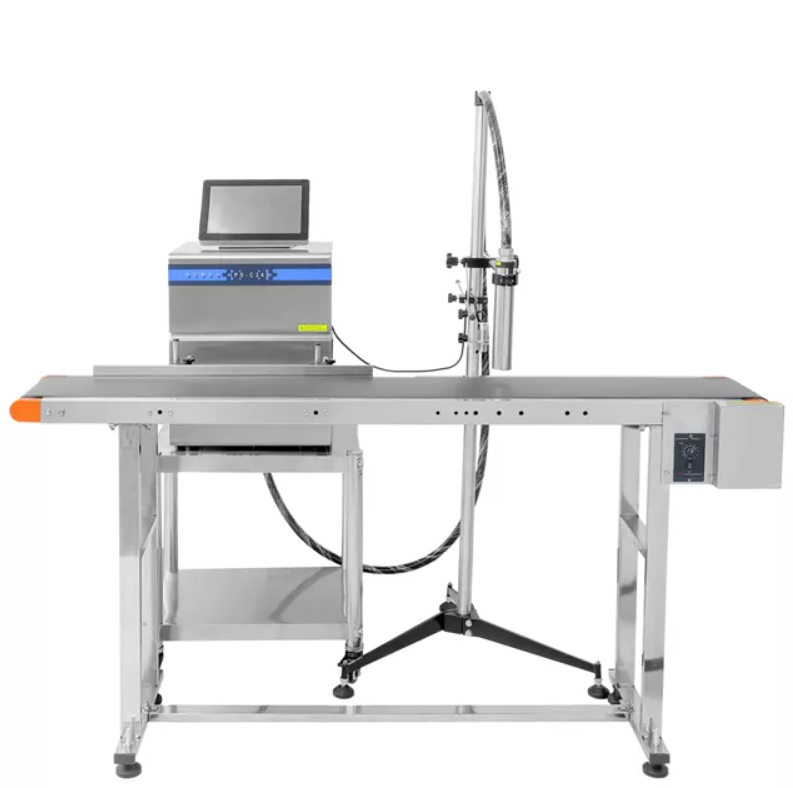

IPS-C240 Industrial Continuous CIJ Inkjet Printer with 5 Line High Speed Date Batch Coding
Designed for light to medium duty production lines, IPS-C240 offers simple operation, low maintenance and superior print quality during everyday use and is ideal for customers who are looking for the maximum functionality and cost-effectiveness.With a max speed of 367 m/min, this CIJ printer provides stable performance and reliability across a broad range of operating conditions.
The IPS-C240 supports MODBUS protocol. It can be connected to other industrial equipment easily with lowest cost. It is a perfect choice for complicated packing line.
Specifications
|
Model
|
IPS-C240
|
|||
|
Nozzle size
|
60μm standard, 50μm and 70μm nozzle optional
|
|||
|
Print line
|
Up to 5 lines print (max 32 dots)
|
|||
|
Print Speed
|
up to 367m/min (5 dot for one line)
- 78 m/min ( 7 dot for 2 lines)
- 40 m/min ( 7 dot for 3 lines)
- 25 m/min ( 7 dot for 4 lines)
|
|||
|
Character height
|
from 1.8mm to 15mm
|
|||
|
Interface
|
10.1 '' LVDS touch screen
WYSIWYG touch to edit message editing
|
|||
|
Language
|
English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Simple Chinese, Spanish, Swedish, Thai, Traditional Chinese, Turkish and Vietnamese.
|
|||
|
Print information
|
time and date, counter, batch code, serial number, barcode, QR code, custom logo/graphics…
|
|||
|
Throw distance
|
from 2mm to 50mm
|
|||
|
Printhead
|
Compact and durable stainless steel
|
|||
|
Communication interface
|
Photocell, Encoder, Alarm beacon ( 24V), Ethernet LAN, RS232, USB Port, Reserved port
|
|||
|
Cabinet
|
304 Stainless steel
|
|||
|
Standard
|
IP54
|
|||
|
Operation temperature range
|
from 0°C - 60°C
|
|||
|
Humidity
|
from 30-95% RH non-condensing
|
|||
|
Electrical requirements
|
100-240VAC at 50/60 Hz, 60W
|
|||
|
Weight
|
36KG
|
|||
|
Accessories
|
Printhead stand, photocell, cleaning kit
|
|||
Applications
IPS-C240 is widely used in food, beverage, daily chemical, pharmaceutical, hardware, electronics, construction materials, such as pouches, packaging film, Cans, plastic bottles/containers, glass bottles/containers, cartons, cation-painted parts, PCBs, wires, cable, pipe, building materials
Benefits
10.1" LVDS touch screen display
With high imagequality, stable performance and high sensitivity, suitable for scenes with high display applications.
A simple interface that supports the easy creation and upload of codes.
Various languages and interface options: English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Simple Chinese, Spanish, Swedish, Thai, Traditional Chinese, Turkish and Vietnamese.
Other language can be customized!
Heated printhead
• Ultra flexible printhead umbilical
• Umbilical length - 3m standard, other size optional
• Umbilical diameter - 21 mm
• Printhead size - 23.5cm long, 4.2cm diameter
Modular spareparts enable easy andreliable replacement
Highly integrated circuitboard
With excellent dust proof, waterproof and heat dissipation performance, as well as anti-interference capability.
IPS-C240 uses 1.4Ghz4-core processor, 1 Gmemory and BG storage space to ensure stable performance.

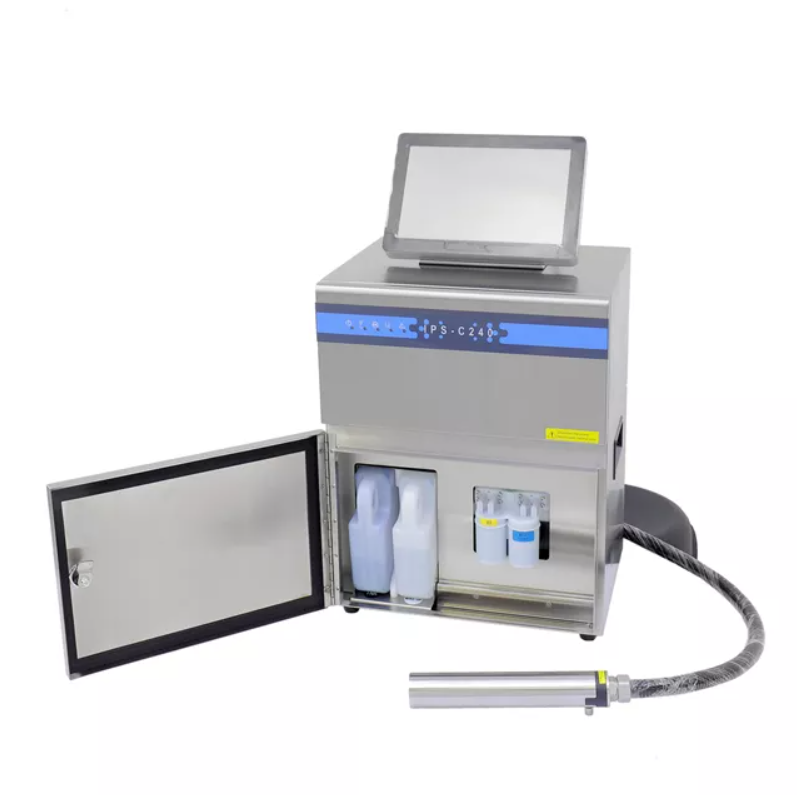

Fluids containers
• Multiple inks available for different applications
• Sealed intelligent cartridges
• 750ml cartridge for both ink and makeup
• RFID system optional
